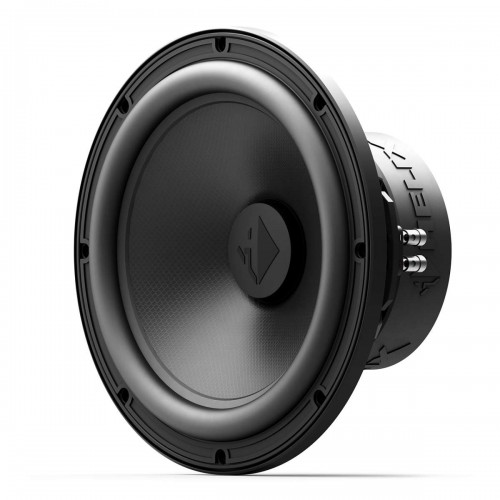

Сабвуферний динамік HELIX IQ W12-DVC2
Код товару: 00910066745
17700грн
Скорочений опис
Power handling RMS / max. P 750 / 1,500 Watts Recommended amplifier power RMS from 300 Watts Impedance Z 2 x 2 Ω DC resistance Re 2 x 1.9 Ω Resonanc...
Читати далі...
Загальні характеристики
- Power handling RMS / max. P 750 / 1,500 Watts
- Recommended amplifier power RMS from 300 Watts
- Impedance Z 2 x 2 Ω
- DC resistance Re 2 x 1.9 Ω
- Resonance frequency Fs 36 Hz 32 Hz 29 Hz 27 Hz
- Mechanical Q factor Qms 5.37
- Electrical Q factor Qes 0.53 0.59 0.64 0.69
- Total Q factor Qts 0.48 0.53 0.57 0.62
- Compliance Cms 96 μm/N
- Equivalent air volume Vas 35 L
- Force factor B*I 18.1 Tm
- Sensitivity SPL 90 dB @ 2.83V / 1m
- 87 dB @ 1W / 1m
- Cone area Sd 515 cm²
- Moving mass Mms 199 g 252 g 305 g 358 g
- Cone material Fiberglass-Mylar honeycomb cone
- Mechanical resistance Rms 8.5 kg/s
- Voice coil diameter ø 63 mm
- Voice coil winding height 34 mm
- Max. linear excursion Xmax +/- 12 mm
- Outer diameter ø 327.1 mm / 12.88"
- Installation diameter ø 281 mm / 11.06"
- Installation depth 144.7 mm / 5.70"
- Recommended enclosure volumes
- Sealed box
- Net volume 33 L 47 L 65 L 115 L
- Lower limiting frequency (-3dB) 53 Hz 44 Hz 37 Hz 31 Hz
- Bassreflex-Gehäuse
- Net volume 70 L 90 L 110 L 140 L
- Port diameter ø 100 mm
- Port area 78 cm²
- Port length 27 cm 31 cm 37 cm 39 cm
- Port tuning frequency Fb 31 Hz 26 Hz 22 Hz 19 Hz
- Lower limiting frequency (-3dB) 27 Hz 22 Hz 19 Hz 16 Hz
common
Виробник
HELIX
Типорозмір
300 мм (12 дюйм.)
