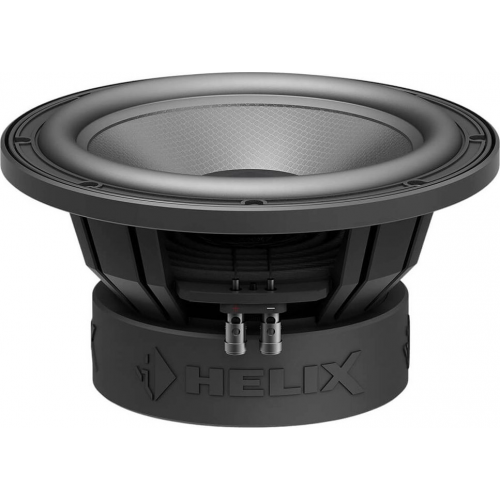

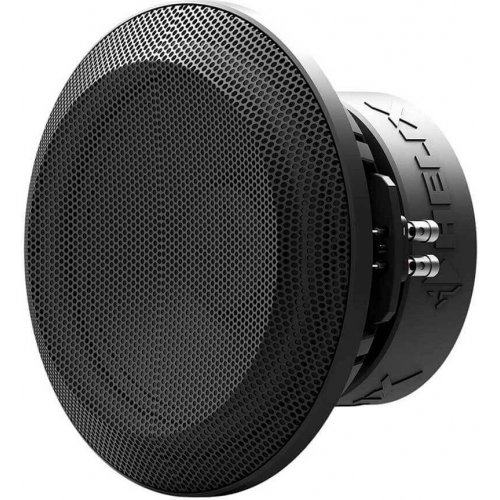

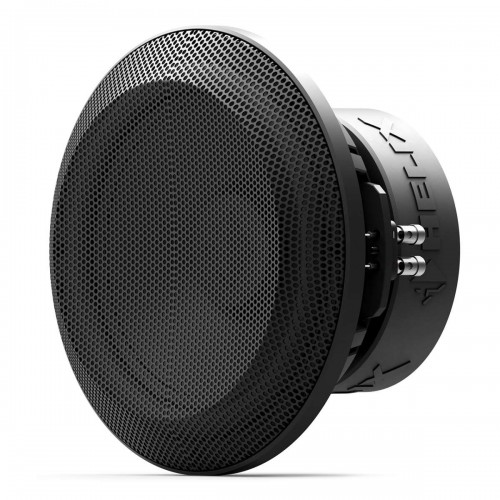

Сабвуферний динамік HELIX IQ W10-DVC2
Код товару: 00910060678
17000грн
Скорочений опис
Power handling RMS / max. P 750 / 1,500 Watts Recommended amplifier power RMS from 300 Watts Impedance Z 2 x 2 Ω DC resistance Re 2 x 1.9 Ω Resonanc...
Читати далі...
Загальні характеристики
- Power handling RMS / max. P 750 / 1,500 Watts
- Recommended amplifier power RMS from 300 Watts
- Impedance Z 2 x 2 Ω
- DC resistance Re 2 x 1.9 Ω
- Resonance frequency Fs 38 Hz 34 Hz 30 Hz 28 Hz
- Mechanical Q factor Qms 6.0
- Electrical Q factor Qes 0.46 0.52 0.61 0.70
- Total Q factor Qts 0.43 0.48 0.55 0.63
- Compliance Cms 115 μm/N
- Equivalent air volume Vas 21 L
- Force factor B*I 17.8 Tm
- Sensitivity SPL 89 dB @ 2.83V / 1m
- 86 dB @ 1W / 1m
- Cone area Sd 363 cm²
- Moving mass Mms 158 g 211 g 264 g 317 g
- Cone material Fiberglass-Mylar honeycomb cone
- Mechanical resistance Rms 6.2 kg/s
- Voice coil diameter ø 63 mm
- Voice coil winding height 32 mm
- Max. linear excursion Xmax +/- 12 mm
- Outer diameter ø 275 mm / 10.83"
- Installation diameter ø 234.6 mm / 9.24"
- Installation depth 134.5 mm / 5.30"
- Recommended enclosure volumes
- Sealed box
- Net volume 13 L 19 L 25 L 30 L
- Lower limiting frequency (-3dB) 65 Hz 52 Hz 40 Hz 33 Hz
- Bassreflex-Gehäuse
- Net volume 27 L 42 L 50 L 65 L
- Port diameter ø 80 mm
- Port area 50 cm²
- Port length 40 cm 40 cm 51 cm 43 cm
- Port tuning frequency Fb 35 Hz 28 Hz 23 Hz 21 Hz
- Lower limiting frequency (-3dB) 33 Hz 25 Hz 20 Hz 18 Hz
common
Виробник
HELIX
Типорозмір
250 мм (10 дюйм.)
