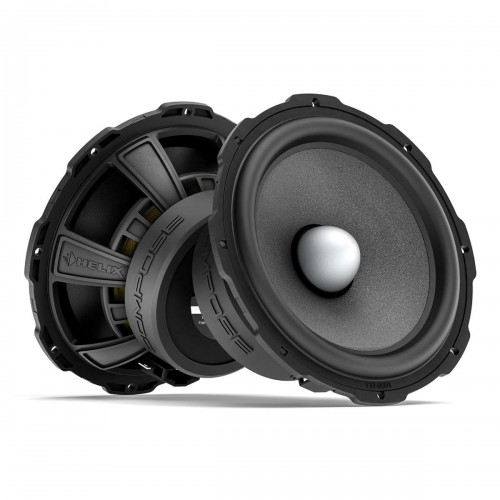

Акустика HELIX Ci5 W165FM-S3
Код товару: 00910066685
8200грн
Скорочений опис
Power handling RMS / Max. P125 / 175 WattsImpedance Z 3 ΩDC resistance Re 3.1 ΩFrequency response 50 Hz - 5,000 HzResonance frequency Fs 50 HzMechanical Q factor Qms 2.38Electrical Q factor Qes 0.50Total Q factor ...
Читати далі...
Загальні характеристики
- Power handling RMS / Max. P
- 125 / 175 Watts
- Impedance Z 3 Ω
- DC resistance Re 3.1 Ω
- Frequency response 50 Hz - 5,000 Hz
- Resonance frequency Fs 50 Hz
- Mechanical Q factor Qms 2.38
- Electrical Q factor Qes 0.50
- Total Q factor Qts 0.41
- Compliance Cms 742 µm/N
- Equivalent air volume Vas 17.9 L
- Force factor B*I 5.2 Tm
- Sensitivity SPL 92 dB @ 2.83 V / 1m
- 88 dB @ 1W / 1m
- Cone area Sd 131 cm²
- Moving mass Mms 14.0 g
- Cone material Silicon coated paper cone
- Mechanical resistance Rms 1.83 kg/s
- Voice coil diameter ø 37 mm
- Voice coil winding height 13.7 mm
- Max. linear excursion Xmax +/- 3.9 mm
- Outer diameter ø 165 mm / 6.5"
- Installation diameter ø 142 mm / 5.59"
- Installation depth 66.8 mm / 2.63"
common
Виробник
HELIX
Серія
Compose i5
Типорозмір
6-6.5\" (16-17cm)
